Features
Navigation
Seamless phone-synced
GPS navigation, always accessible on your wrist.

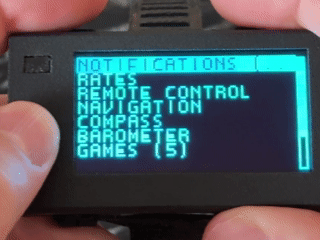

Customizable Notifications
Notifications: View phone
and custom ENDGAME notifications instantly.
Variometer
Track altitude and pressure for hiking and weather monitoring.
Accurate step counting for fitness and activity tracking.
Two LEDs
1 full RGB LED for notifications, 1 bright white LED for illumination in the dark.
Fully open-source, flash and update firmware without app stores.

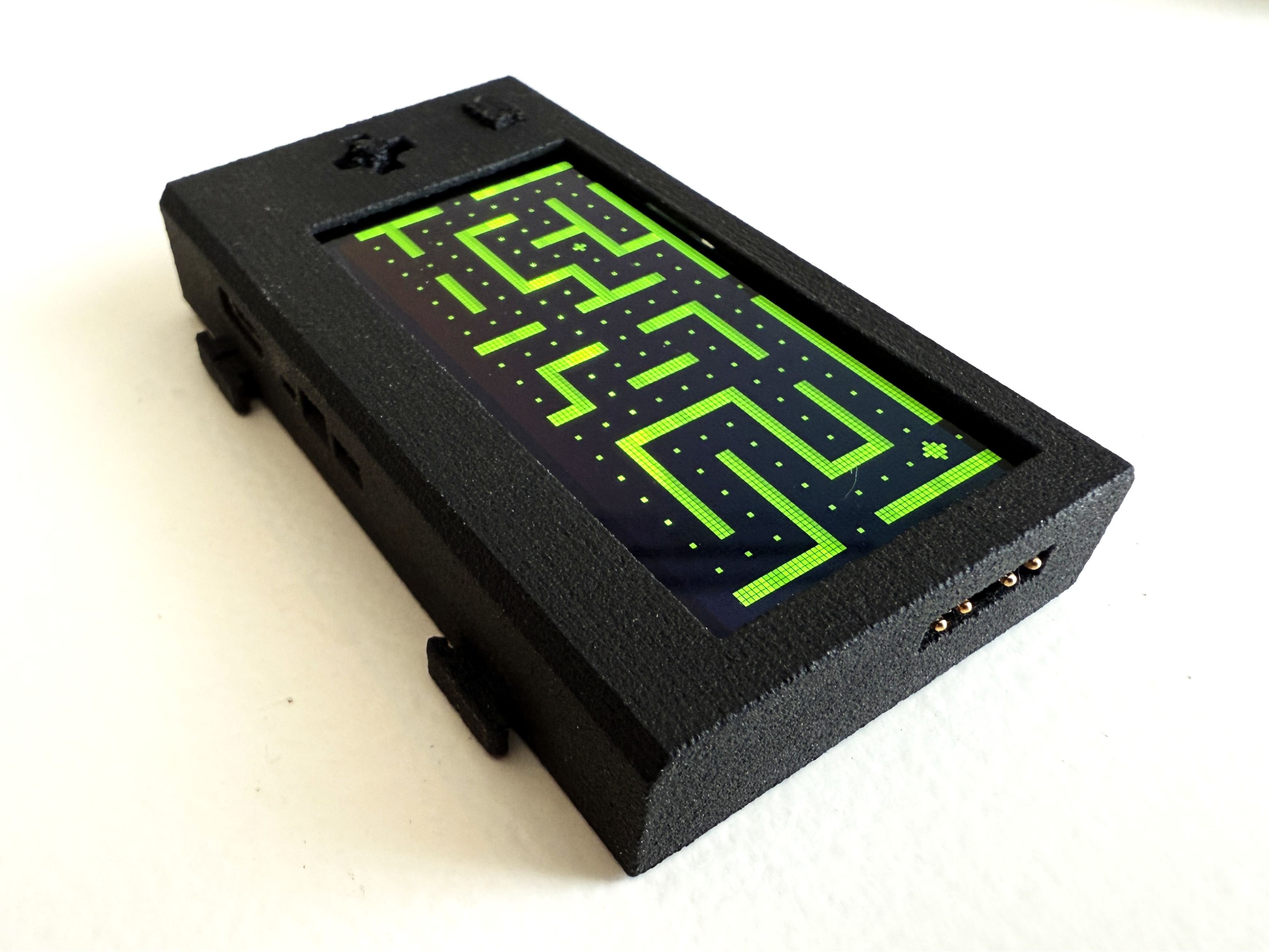

ESP-protected I2C port for communication with other devices.
For charging and flashing the device.
Technical Specifications
ESP32-S3-N8R8 controller (main processor for Wi-Fi, Bluetooth, and computing tasks), and the following key components
73dB 4kHz Magnetic Buzzer for haptic feedback and alerts.
White LED for illumination in low-light conditions.

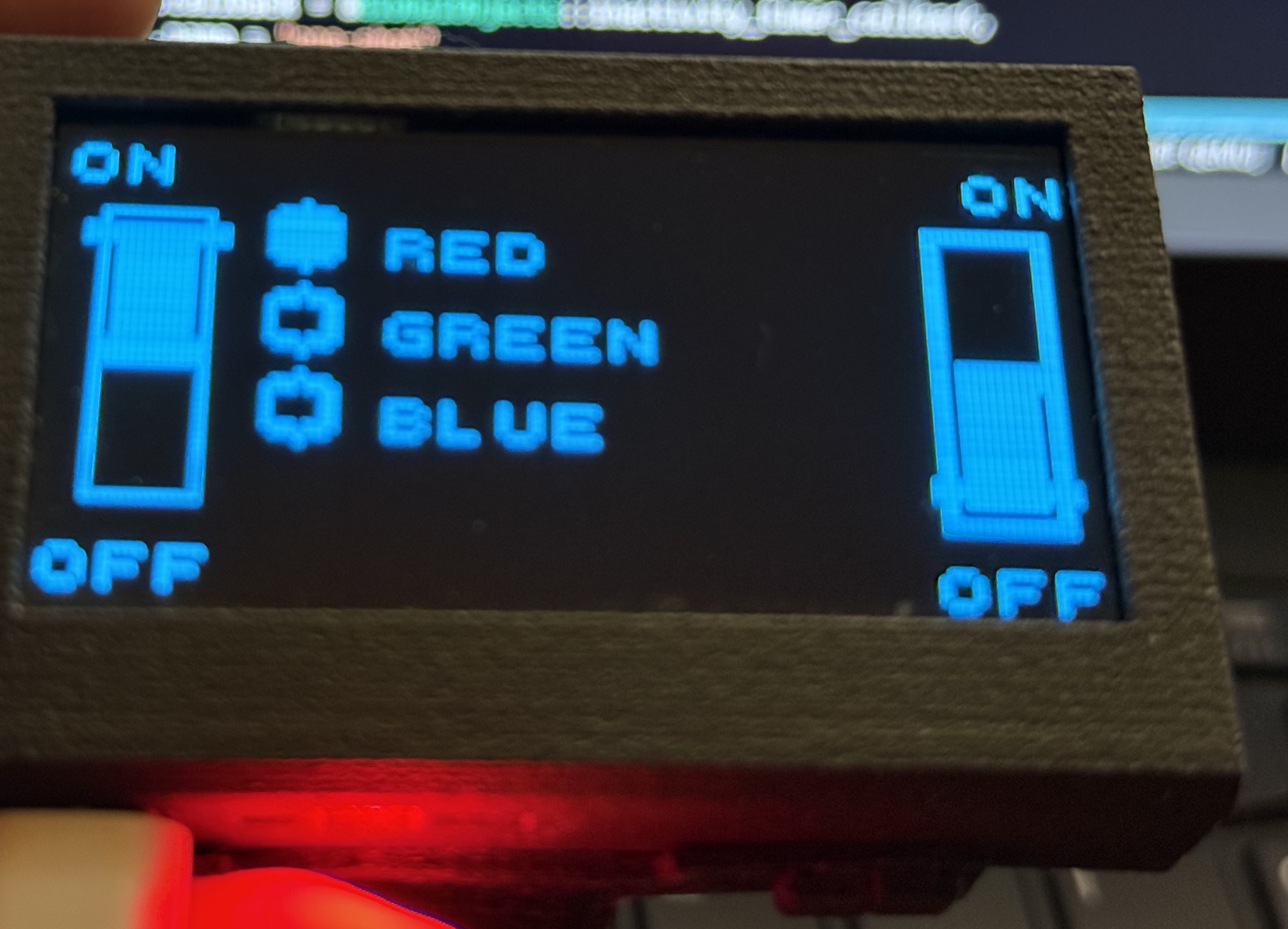

RGB LED for customizable notifications and visual signals.
2Mbps Transceiver USB 2.0 USB IC for USB communication and flashing.
SMD-4P Ambient Light Sensor for automatic display dimming based on environment.
Hall Sensor for magnetic field detection (e.g., compass functionality).
26Kpa~126Kpa Pressure Sensor for altitude and weather tracking (variometer).
Accelerometer and gyroscope for motion sensing, gaming, and pedometer.
5A Type-C SMD USB Connector for charging and data transfer.

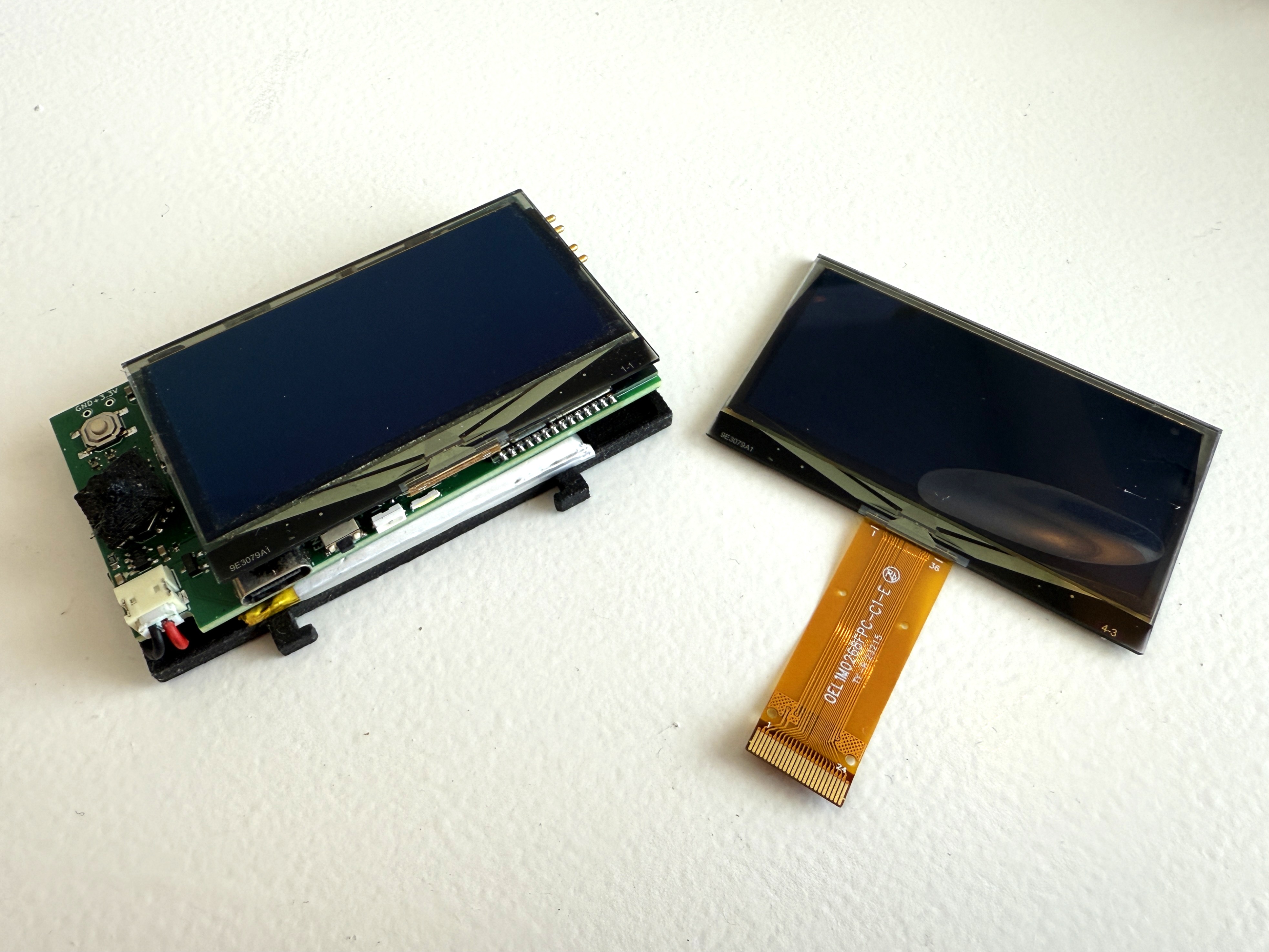

Clamshell 24P FFC/FPC Connector for OLED display.
External 32.768kHz Crystal for precise timing and real-time clock.
Gallery
ENDGAME prototype in action during hiking - variometer tracking altitude.
ENDGAME prototype in action during hiking - variometer tracking altitude.
ENDGAME prototype in action during hiking - variometer tracking altitude.
ENDGAME prototype in action during hiking - variometer tracking altitude.
